Wallux Surface Mini
The Wallux Surface Mini is a mini square LED path light that provides low-glare lighting. Its classic stainless steel design is glare-free and ideal for step-washing and general orientation lighting, including wet areas. It has a fixed asymmetric 60° beam and is IP65 dimmable with a remote driver. An on/off driver is also available and it comes with a fixing box when installed externally. For added convenience, a version with a built-in driver is available.
Downloads
Technical information
| Construction | Stainless 316, back-box injection moulded |
| Colour (RAL finish) |
Any custom RAL, Brushed stainless steel, Plated versions |
| Light source |
2w LED (100 lms) Osram 2835 SMD 24v DC UGR19 |
| Colour temp. |
2400K (special order), 2700K, 3000K |
| Macadam | <3 |
| Beam angle | Fixed asymmetric 60° |
| Controls | On/off, Mains dim, DALI, Casambi (blue-tooth control of each fixture), 0-10V |

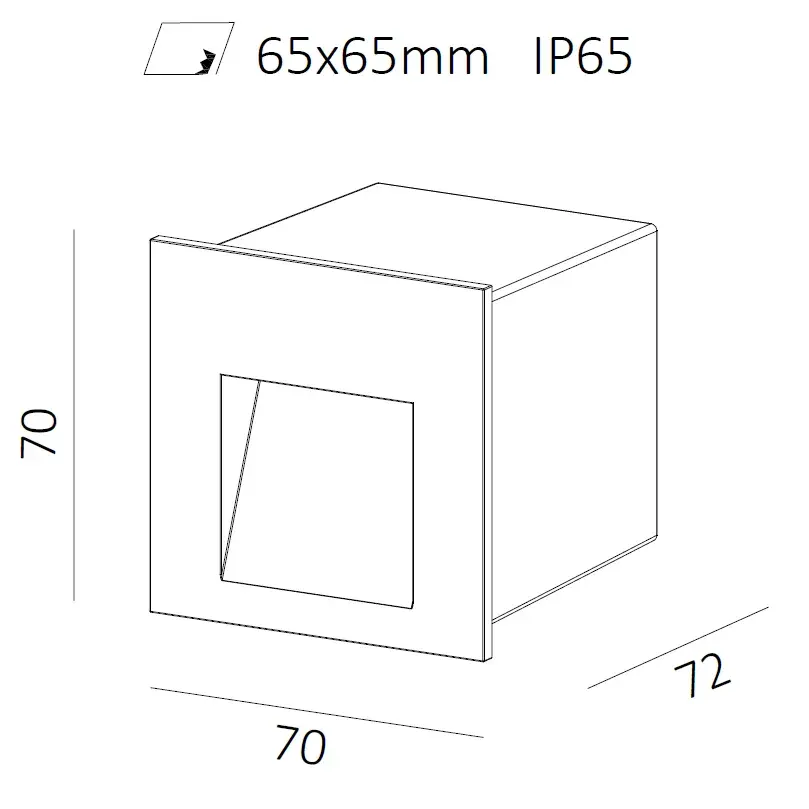

| Dimensions (mm) |
70 × 70 |
| Cut out Dimension (mm) |
65 x 65 |
| Special Notes |
Select version with built-in driver (240v on/off) or remote dimming driver (parallel 24v DC) |
