Maverick Max Surface
Maverick Max Surface: a high-lumen surface dimmable spotlight designed for versatility and performance. With its adjustable 90° tilt and 320° rotation, you can precisely direct light wherever it's needed. Its contemporary look makes it suitable for all high-powered high-lighting applications. Available in versions with both integral and remote drivers, the Maverick Max Surface ensures optimal illumination for any space.
Downloads
Technical information
| Construction | Aluminium body, internal components |
| Colour (RAL finish) |
Any custom RAL, Black RAL9017, RAL9016 |
| Light source | 24w LED (2100 lms nom.) |
| Colour temp. | 2700K, 3000K, 4000K, CRI 90+ |
| Beam angle | 16 deg, 22 deg, 34 deg, 43 deg |
| Controls | DALI, Casambi (allows individual control of each fixture), 0-10V, Phase (remote) |
| Macadam | 3 |
| Optional accessories |
Snoot, Softening lens, Elongating lens, Honeycomb |

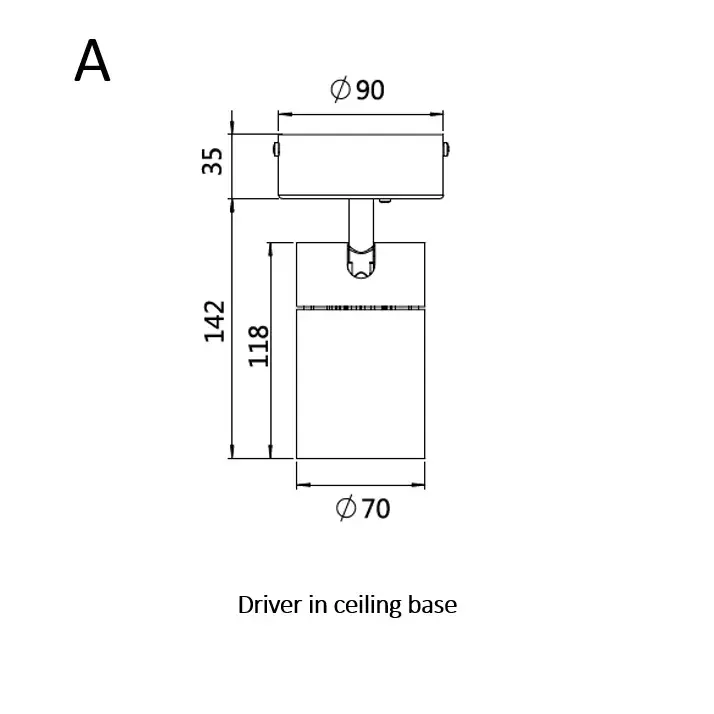

| Dimensions (mm) |
163 × 70 |
| Special Notes |
Mounting and driver options on pdf data Sheet |
