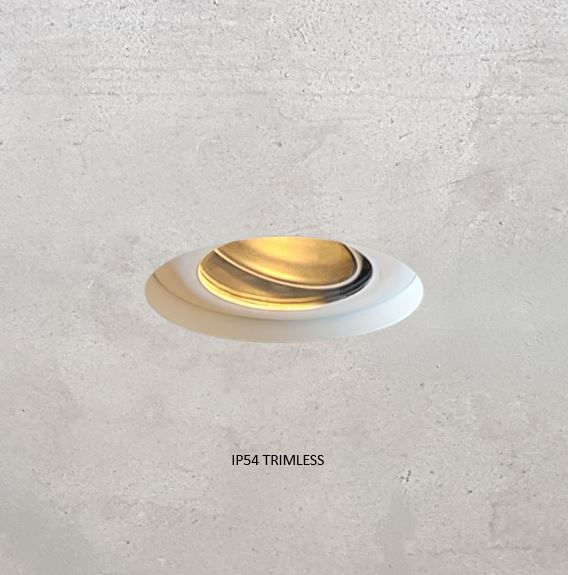

Aria Pro Trimless
The Aria Pro Trimless is a round LED recessed dark-light downlight with an adjustable 30deg tilt. It features a dim-to-warm technology for a smooth transition between light sources, and is available in both IP20 and IP54 options. This spot light is perfect for creating soft, ambient lighting in a variety of settings.
Downloads
Technical Information
| Construction | Die Cast Aluminium |
| Colour (RAL finish) | Other RAL colours to order, White RAL9003 |
| Light source | 11w LED (975 lms) 250 mA 44v, 9w LED (750 lms) 200, GU10 7w LED (560 lms) 240v |
| Colour temp. | 2400K (special order), 2700K CRI92, 3000K CRI92, 4000K CRI92, Dim to Warm version available |
| Beam angle | 24 deg, 36 deg, 40 deg |
| Macadam | 3 |
| Controls | Mains dim, DALI, 0-10V, Casambi (blue-tooth control of each fixture) |
| Optional accessories | Elongating lens, Firehood or FIRE-DISK, White internal barrel (Suffix AW) |
| Dimensions (mm) | 85 x 70 |
| Cut out Dimension (mm) |
77 (trimless frame) |
| Special Notes | Cut-out 77mm., Trimless frame installed when plastering. |
