Alpha Adjustable

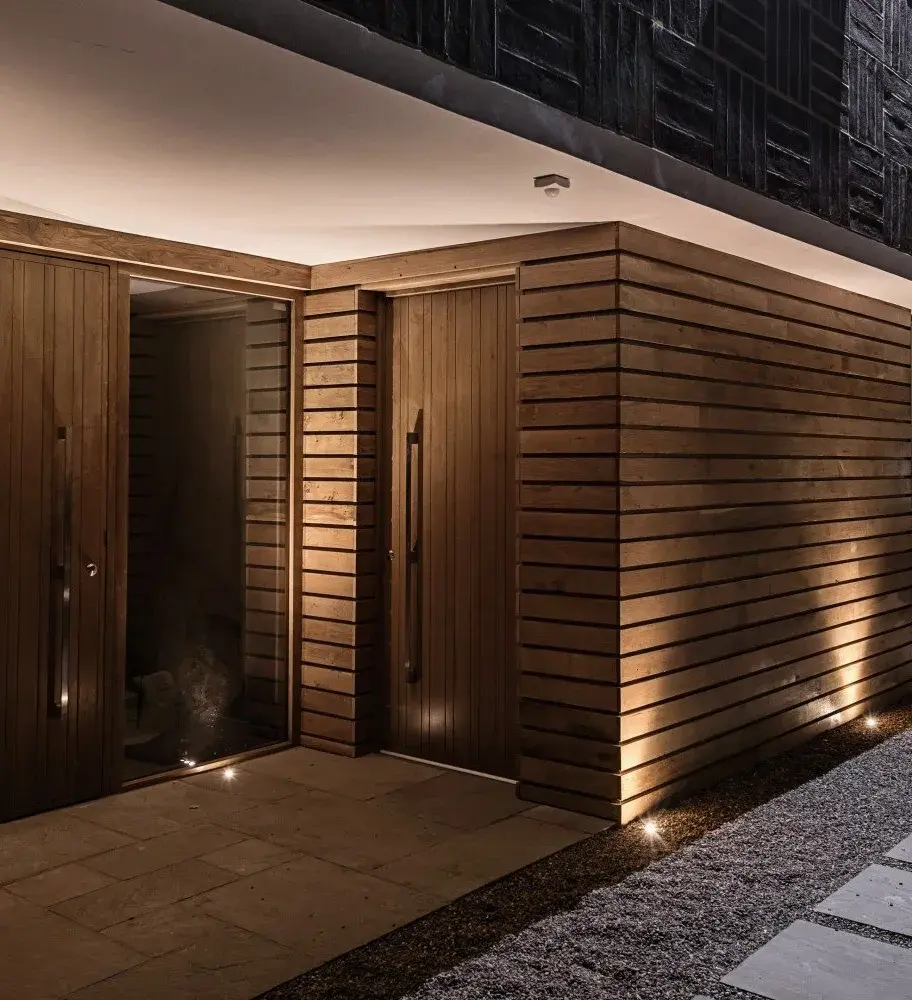

The Alpha adjustable is a stylish and practical in-ground up-light with a directional 18° beam and optional anti-glare shield. It is dimmable and IP rated for outdoor use, making it perfect for up-lighting and step washing. With its smallest dimensions, it is discreet yet powerful, providing a medium or narrow beam for maximum efficiency.
Downloads
Technical information
| Construction | Stainless 316, Die cast aluminium with silicone gaskets |
| Colour (RAL finish) |
Any custom RAL, Plated versions, Stainless steel |
| Light source | 3w LED (225lms) 700mA 4.5v DC |
| Colour temp. | 2700K CRI90, 3000K CRI 90 |
| Macadam | 3 |
| Beam angle | 15 deg, 36 deg |
| Controls | On/off, Mains dim, DALI, Casambi (blue-tooth control of each fixture), 0-10V |
| Dimensions (mm) |
56 × 54 |
| Cut out Dimension (mm) |
50 |
| Optional accessories |
Anti-glare ‘half-shield' |
| Special Notes | Requires remote driver. Order separately., Wire-in-series custom finishes, subject to extra charge. |
